Usage:

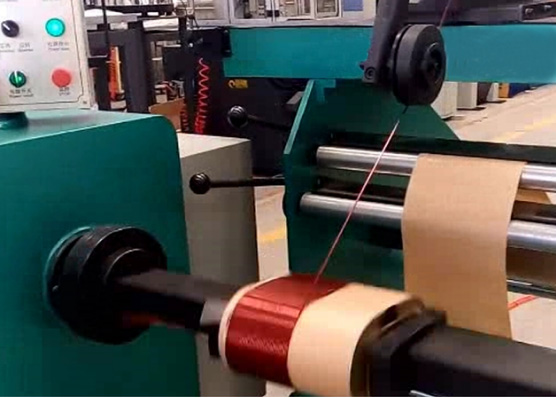

It is widely used in distribution transformer (oil immersed transformer, dry transformer,amorphous alloy transformer) ,reactor and similar process of HV coil winding.
Technical data:
|
Model |
GRX-100 |
GRX-800 |
|
General |
||
|
Dimension L×W×H |
1400×2000×1300mm |
2550×2180×1980mm |
|
Winding width |
500 mm |
800mm |
|
Weight |
500kg |
1000kg |
|
Power supply |
3×220(380)(415)V 50(60)HZ |
3×220(380)(415)V 50(60)HZ |
|
Coil |
||
|
Coil diameter |
80-400mm |
80-600mm |
|
Coil width (Max) |
500mm |
800mm |
|
Coil weight(Max) |
100kg |
300kg |
|
No.of coils wound simultaneously |
1 or 2 |
1 or 2 |
|
Coil cross section |
Round,oval,rectangle |
Round,oval,rectangle |
|
conductors |
||
|
Round wire diameter |
Φ0.3mm—Φ3mm |
Φ0.3mm—Φ3mm |
|
Flat wire |
1×9mm |
3×12mm |
|

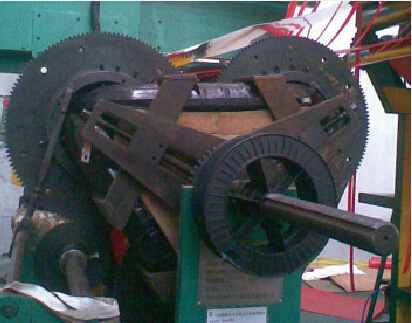

Mandrel |
||
|
Speed adjustment method |
Frequency stepless control |
Frequency stepless control |
|
Mandrel rotation speed (Max) |
450rpm |
450rpm |
|
Mandrel torque |
100Nm |
100Nm |
Features:

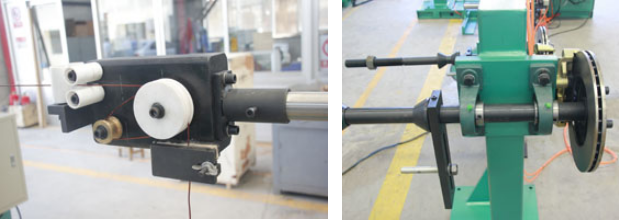

1.wire brake for round and flat wire
2.Automatic insulation layer feeder
3.PLC control system
4.special style to make wire displacement synchronous with winding.
